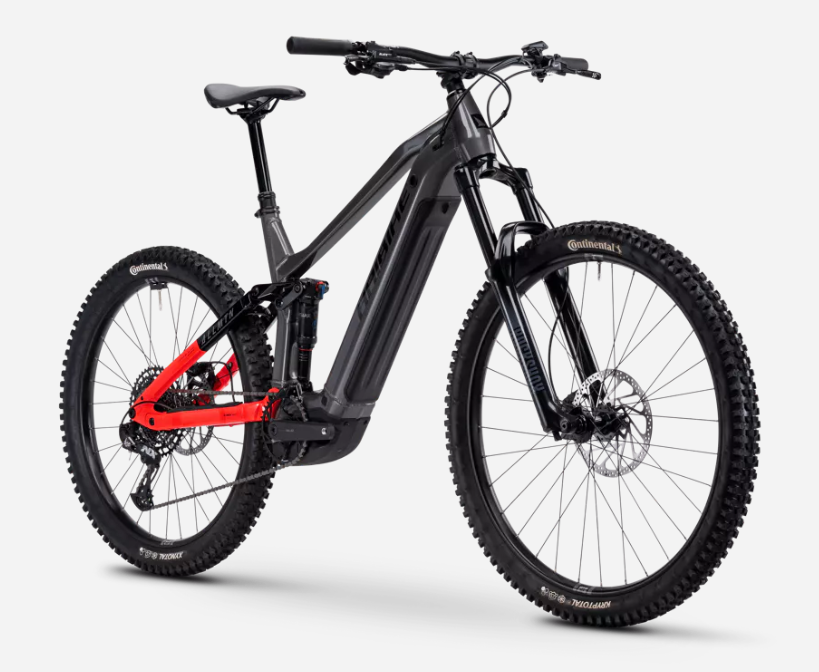

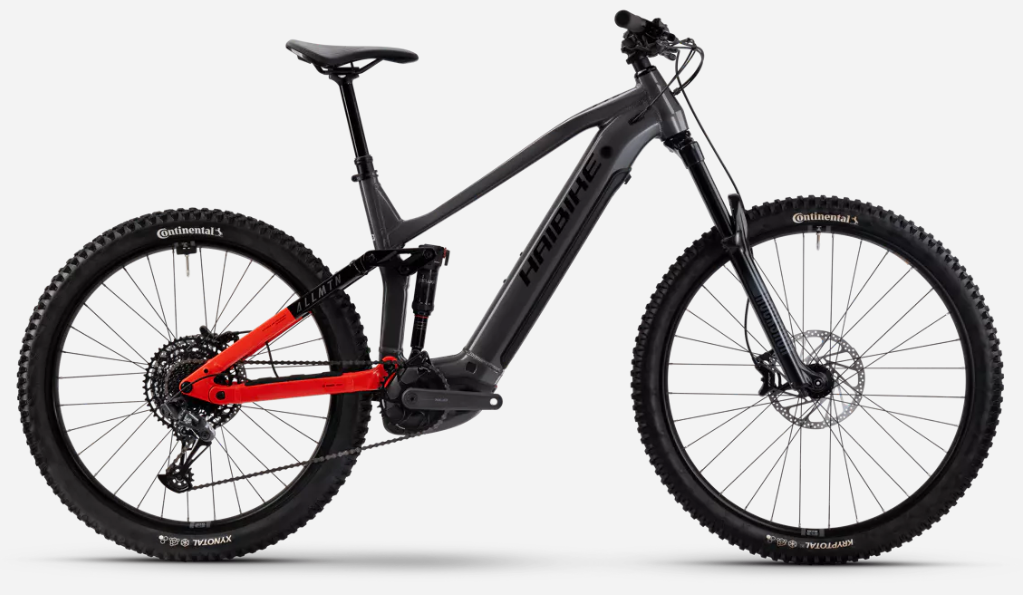

Haibike AllMtn 4
Haibike AllMtn 4
Are you looking for a versatile EMTB that is comfortable on the most demanding paths? So AllMtn 4 is your ideal companion! The RockShox Yari tires shock absorbed offers a more than sufficient reserve with an excursion of 160 mm. Thanks to the reliable Shimano components for the gearbox and brakes and on the different wheels of 29 "/27.5" you can easily exceed all obstacles and always have full control of your EMTB. The Yamaha PW-X3 high-performance engine guarantees you power in the mountains and you will no longer have to worry about autonomy in the long outputs: with the optional range extender it is possible to expand the battery capacity of 360 WH and redefine your limits.
Specific
-
-
Engineer
Yamaha, PW-X3, 250 W, 85 Nm
-
DISPLAY
Yamaha, Side Switch, 1.7 "LCD, 7 Functions
-
Battery
Intuube, 720 WH
-
Family frames
Haibike, AllMtn PW-X3, Aluminium
-

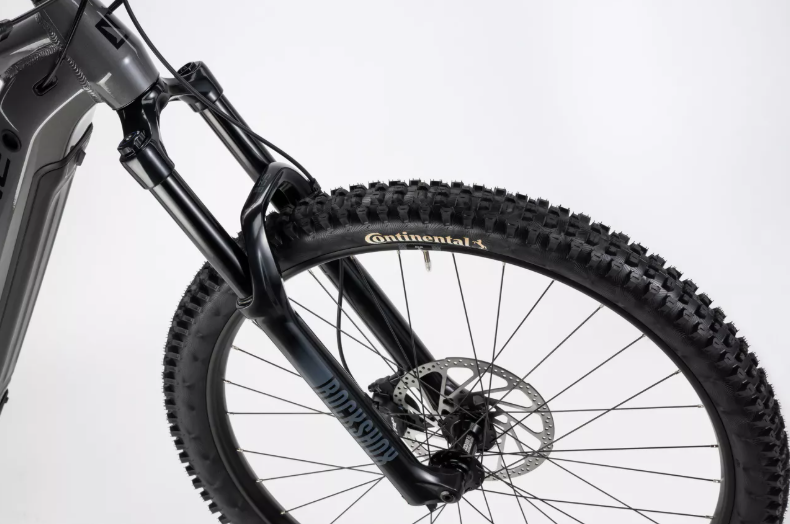

Fork
Rockshox, Yari RC, Air, 160 mm Travel, Aluminium Steerer Tube 1 1/8 " - 1 1/2" TapaD, 15 x 110mm Thru -XXle Boost
-

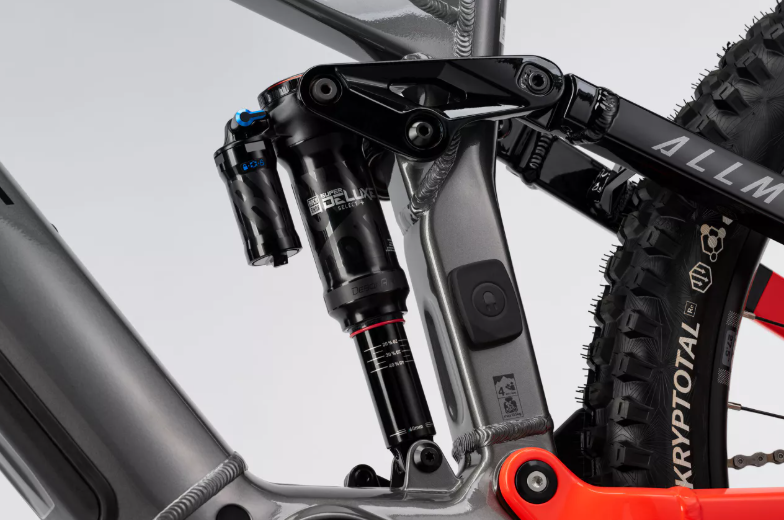

Damper
Rockshox, Deluxe Select Plus, Air, Trunnion Mount
-
Crank Arm
Haibike Components, The Crank ++, Aluminium
-
Brake (Front)
Shimano, M6120, Hydraulic Disc Brakes
-
Brake (Rear)
Shimano, M6120, Hydraulic Disc Brakes
-
Tube
Lends Valve
-
Rim
WTB, ST i30 TCS, Double Wall
-
Clamping ring
Internal Hexagon, 38.1 mm
-

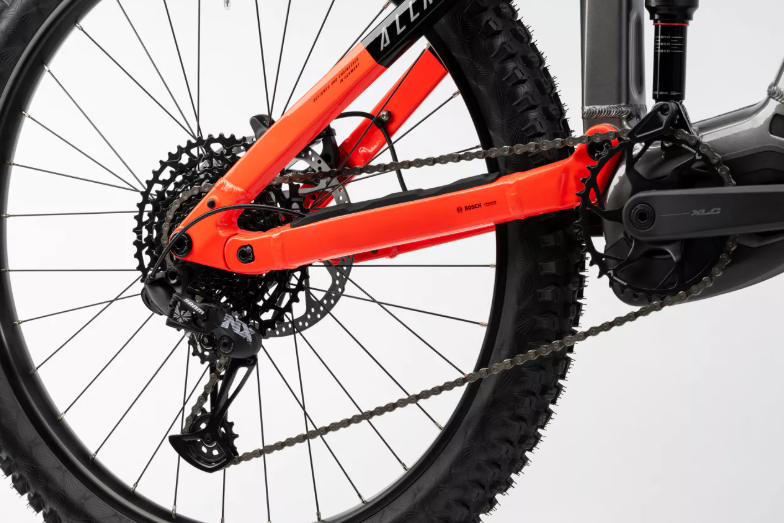

Rear Derailleur
Shimano, SLX M7100
-
Shift lever
Shimano, Deore SLX M7100
-
Bottom Bracket
Integrated in the Motor
-
Sprocket
Shimano, M6100, 10 - 51 Teeth
-
Chain
Shimano, CN-M6100
-
Chainring
Haibike Components, Aluminium, 36 Teeth
-
Chain Guide
Nylon Directmount
-
Brake Lever
Shimano, Deore M6100, Aluminium
-
Brake Disc (Front)
Shimano, RT30-L, 203 mm
-
Brake Disc (Rear)
Shimano, RT EM300L, 203 mm
-
Tyre
Maxxis, minion DHF II, 63-622, 29 x 2.5 inch
-
Front Wheel Hub
Shimano, MT410-B, Centerlock
-
Rear Wheel Hub
Shimano, MT410, Centerlock
-
Spokes
Sapim, Race
-

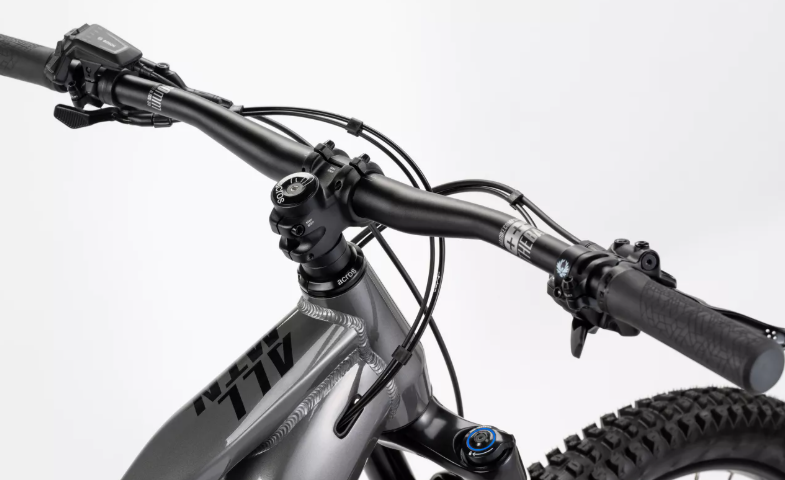

Handlebar
Haibike Components, Thebar +++, 780 mm
-
Grips
Haibike, MTB GRIPS
-
Stem
Haibike Components, Thestem +++, 31.8 mm
-
Headset
Acros, Blocklock, Aluminium
-
Saddle
Selle Royal, alive
-
Seat Post
Haibike Components, Dropper-post Remote 34.9, Aluminium, Telescope, 34.9 mm
-
Pedals
Freeridepedal, aluminium, with reflector
-
PEMITTED TOTAL WEIGHT
120.0 kg
-
Tyre (Rear, If Different)
Maxxis, minion dhr II, 66-584, 27.5 x 2.6 inch
-
Rim (rear, if different)
WTB, St I35 TCS, Double Wall
-
* The illustration above is an example. We reserve the right to replace individual parts with components of the same quality or superior quality on condition that the type, suitability and purpose of the bicycle are not prejudiced. This could translate into the delivery of a slightly different bicycle. At the moment, the use of different components is mainly caused by the delivery problems due to the Pandemia di Coronavirus.
